ALFOSC Bias frame, Ampl A, high gain
The vertical gradient
in short exposures is typically a few ADUs. In long
exposures it can be tens of ADUs, however the overscan follows
the trend, hence this can be subtracted straightforwardly
(see the CCD#8 pre-commissioning report).

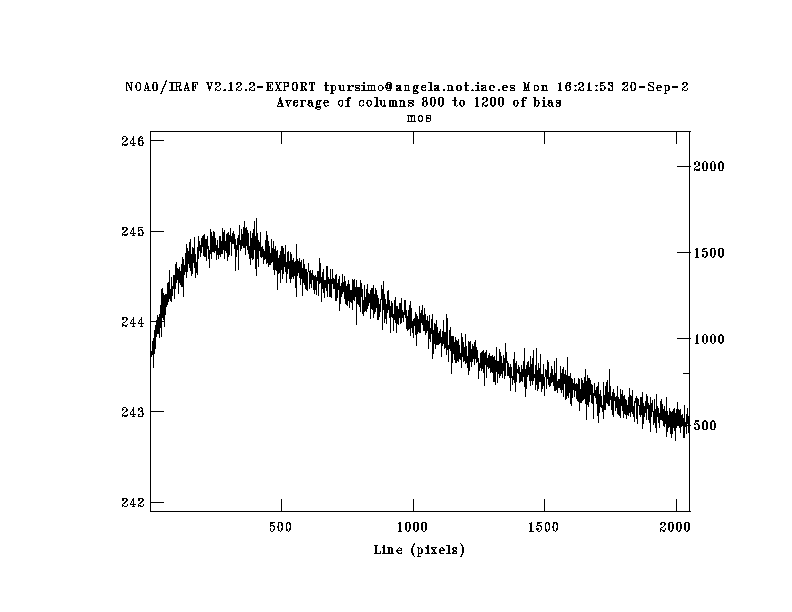

An average of columns 900 to 1200 of a combination of ten bias frames.
Click here to see large image.

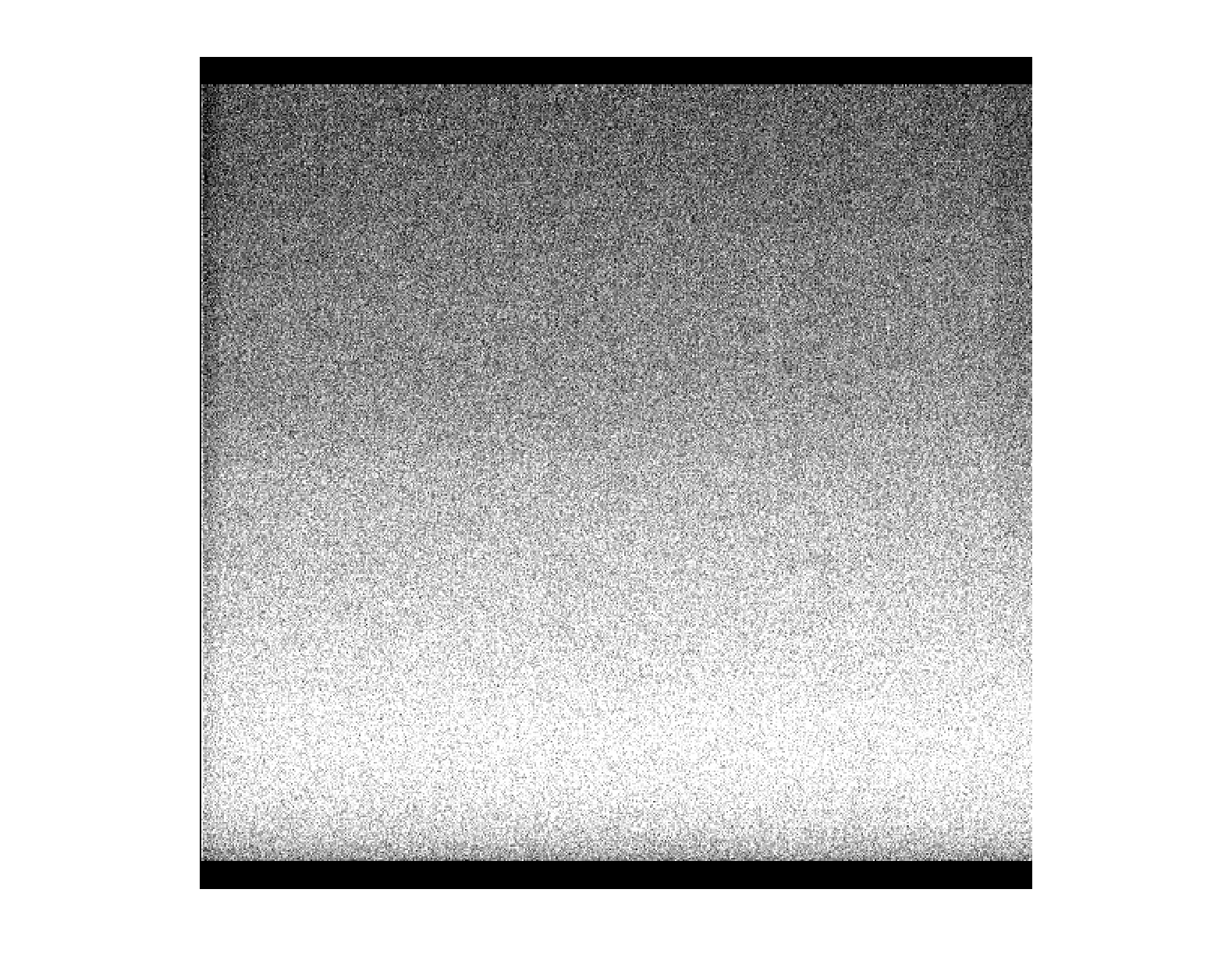

A combined frame of ten bias frames.
The grayscale cuts are +/- 3 ADUs.
Click here to see large image.
Note that the pre- and overscan regions are nearly invisible
in the grayscale image.
| |
