ALFOSC Bias frame, Ampl A, high gain
The vertical gradient
in short exposures is typically a few ADUs. In long
exposures it can be tens of ADUs, however the overscan follows
the trend, hence this can be subtracted straightforwardly
(see the CCD#8 pre-commissioning report).

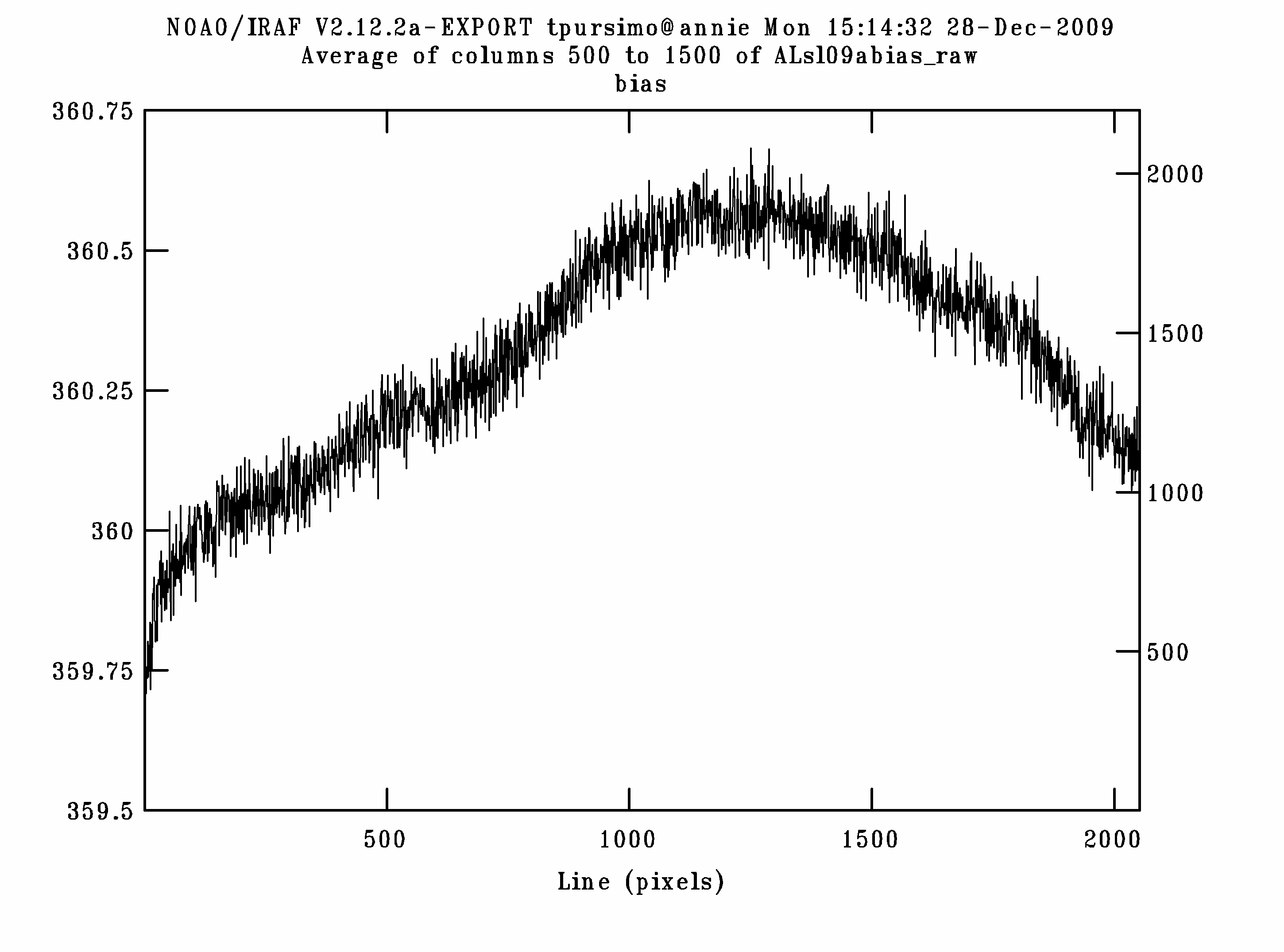

An average of columns 500 to 1500 of a combination of fifteen bias frames.
Click here to see large image.
The (trimmed) full frame median is 360.3 ADU with standard deviation of
1.34 (minimum=352., maximum=367.).

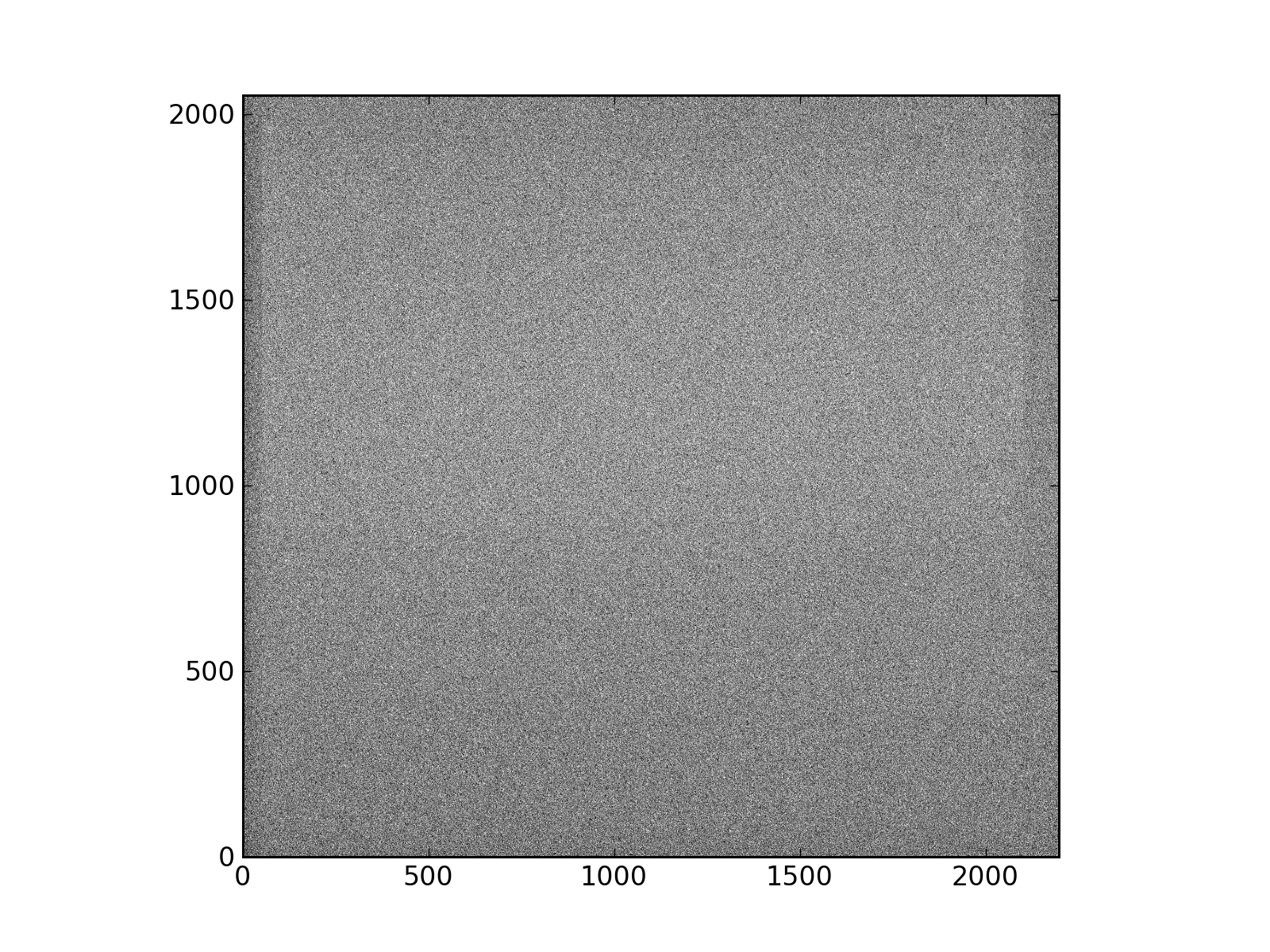

A combined frame of fifteen bias frames.
The grayscale cuts are +/- 3 ADUs.
Click here to see large image.
Note that the pre- and overscan regions are nearly invisible
in the grayscale image.
